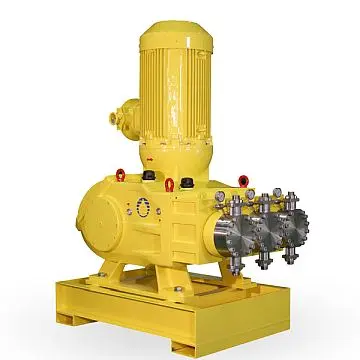

MEGAROYAL
High Performance Diaphragm Pump
The MEGAROYAL diaphragm pump delivers high flow and high pressure performance for critical chemical injection. Designed for reliability, safety, and efficiency in the toughest industrial applications.
Why Choose Us?
MEGAROYAL pumps are built for the most demanding chemical injection tasks, combining high pressure performance with leak-proof reliability. With a compact footprint and flow rates up to 12,680 GPH, they deliver consistent, safe operation even in extreme environments. The patented diaphragm design ensures over 20,000 hours of service life, while advanced features like the MARS refill system and double-diaphragm detection provide superior protection and reduced maintenance. Backed by API 675 compliance and trusted in oil & gas, chemical, and industrial processes worldwide, MEGAROYAL is the pump you can count on.
megaroyal
Precision Pumping
for Demanding Applications
The MEGAROYAL is a high performance process diaphragm pump designed for critical chemical injection and fluid transfer. It handles flow rates up to 12,680 gallons per hour and pressures up to 3,655 PSI while maintaining a compact footprint. With a patented diaphragm that offers over 20,000 hours of service life, along with advanced safety systems and full compliance with API 675 standards, MEGAROYAL® is a trusted solution across oil and gas, chemical processing, and industrial applications.
High flow capacity up to 12,680 gallons per hour
Maximum discharge pressure of 3,655 PSI
Patented diaphragm with over 20,000 hours of service life
Compact footprint for space saving installations
Leak proof double diaphragm design
Advanced MARS hydraulic oil refill system
Integrated air bleed valve for flow control
Double diaphragm rupture detection with alarm support
Variable frequency drive for capacity adjustment
Corrosion resistant materials and construction
API 675 compliant for industrial standards
Maximum Flow Capacity
12,680 gallons per hour
211 gallons per minute
48 cubic meters per hour
Maximum Discharge Pressure
3,655 PSI
252 bar
Motor Power
Up to 100 horsepower
75 kilowatts
Pumped Fluid Temperature
14°F to 203°F
Minus 10°C to 95°C
Capacity Adjustment
Variable frequency drive with variable frequency motor
Diaphragm Life Expectancy
Over 20,000 operating hours
Compliance
API 675 compliant
Design
Compact footprint
Leak proof double diaphragm
Advanced hydraulic control with MARS system
Megaroyal Series Product Comparison
|
Specification / Feature
|
HX268
|
HX308
|
HX368
|
|---|---|---|---|
|
Application Example
|
Acid water, chemicals
|
Oil & gas, condensate
|
Heavy oil, chemicals
|
|
Flow Capacity Range
|
Up to 141 GPH (32 m³/h)
|
Up to 79.5 GPH (18 m³/h)
|
Up to 50.6 GPH (11.5 m³/h)
|
|
Max Discharge Pressure
|
696 PSI (48 bar)
|
667 PSI (46 bar)
|
1,465 PSI (101 bar)
|
|
Typical Fluid Temperature
|
140°F (60°C)
|
98°F (36.5°C)
|
166°F (130°C)
|
|
Motor Power
|
75 kW
|
45 kW
|
55–75 kW
|
|
Footprint
|
Compact
|
Compact
|
Compact
|
|
Double Diaphragm Detection
|
Yes
|
Yes
|
Yes
|
|
Diaphragm Life
|
20,000+ hours
|
20,000+ hours
|
20,000+ hours
|
|
Patented MARS Refill System
|
Yes
|
Yes
|
Yes
|
|
API 675 Compliant
|
Yes
|
Yes
|
Yes
|
|
Drive Type
|
VFD Motor
|
VFD Motor
|
VFD Motor
|
|
Pump Type
|
Triplex Diaphragm
|
Triplex Diaphragm
|
Triplex Diaphragm
|
