Precision Metering Pumps for Every Application
MILROYAL delivers accurate and reliable chemical injection for a wide range of pressures, flows, and industrial applications. It is designed to meet the toughest process demands with long lasting performance.
Why Choose Us?
MILROYAL is trusted for its precise and consistent chemical dosing in the most demanding environments. Its modular design allows easy customization for different applications, while advanced safety features help protect your system and reduce downtime. Built with durable materials and proven technology, MILROYAL ensures long term reliability and performance for critical industrial processes.
MILROYAL Series B
Modular Metering Pump or Accurate Chemical Injection
The “V” Series pump is a range of compact, self-contained, pneumatic metering pumps suitable for injecting a wide variety of chemiå√cals that range from 0.07 gph to 9 gph (0.27 lph to 34 lph) and pressures up to 13,100 psig (903 barg).
Often used in oil & gas applications requiring micro-injection of neat chemicals, the CP125V125 model is capable of injecting volumes as low as 0.025 cc/stroke at pressures up to 8000 psig (552 barg). This makes it an ideal niche pump for extreme applications.
Made of 316 SS, the “V” Series pumps are robust and capable of meeting the toughest challenges.
Modular design for maximum flexibility
Capacity up to 626 gallons per hour
Pressure capability up to 10,000 PSI
Multiplexing up to 8 pump heads on one drive
Three liquid end types: diaphragm, packed plunger, disc diaphragm
Micrometer manual stroke adjustment
Electronic and pneumatic control options available
Built for continuous duty with oil bath crankcase
Suitable for high pressure and high precision applications
Available with diaphragm rupture detection and alarm
Maximum Flow Rate
Up to 626 gallons per hour
Maximum Pressure
Up to 10,000 PSI depending on liquid end
Liquid End Options
High performance diaphragm
Packed plunger
Disc diaphragm
Multiplexing
Up to 8 pump heads per drive
Drive Type
Polar crank with oil lubrication
Top dead center stroke design
Control Options
Manual micrometer
Optional pneumatic or electronic adjustment
Stroke Adjustment Range
10 to 100 percent
Temperature Range
Depends on liquid end and materials
(Contact factory for specific compatibility)
Materials of Construction
Available in a range of corrosion resistant metals and elastomers
Compliance
Designed to meet API 675 performance standards
MILROYAL Series C
High Pressure Metering Pump for Critical Industrial Applications
MILROYAL Series C is engineered for the most demanding high pressure chemical injection applications. It delivers reliable, accurate performance with flow rates up to 3,000 gallons per hour and discharge pressures up to 20,000 PSI. Designed to meet the strictest safety and operational standards, the pump features a rugged drive system, long lasting diaphragm technology, and full compliance with API 675. MILROYAL C is ideal for industries such as oil refining, petrochemicals, power generation, and large scale water treatment.
Flow capacity up to 3,000 gallons per hour
Pressure capability up to 20,000 PSI
API 675 compliant for critical process standards
Rugged and compact design with high mechanical efficiency
High performance diaphragm with over 20,000 hours of service life
Built for continuous operation in extreme pressure environments
Advanced drive system with hydraulic reliability
Available with multiple liquid end materials for chemical compatibility
Double diaphragm with rupture detection available
Designed for low maintenance and long operating life
Maximum Flow Rate
Up to 3,000 gallons per hour
Up to 11,356 liters per hour
Maximum Discharge Pressure
Up to 20,000 PSI
Up to 1,379 bar
Motor Power
Up to 100 horsepower
Up to 75 kilowatts
Pump Type
High performance diaphragm metering pump
Control System
Adjustable stroke mechanism
Compatible with remote automation systems
Drive Mechanism
Heavy duty power frame
Built for continuous duty
Diaphragm Life
Over 20,000 operating hours under recommended conditions
Liquid End Options
High performance diaphragm (HPD)
Various materials available based on application
Compliance
Fully compliant with API 675 industrial standards
Applications
Oil and gas production
Petrochemical and chemical processing
Power generation
Refineries
Water treatment systems

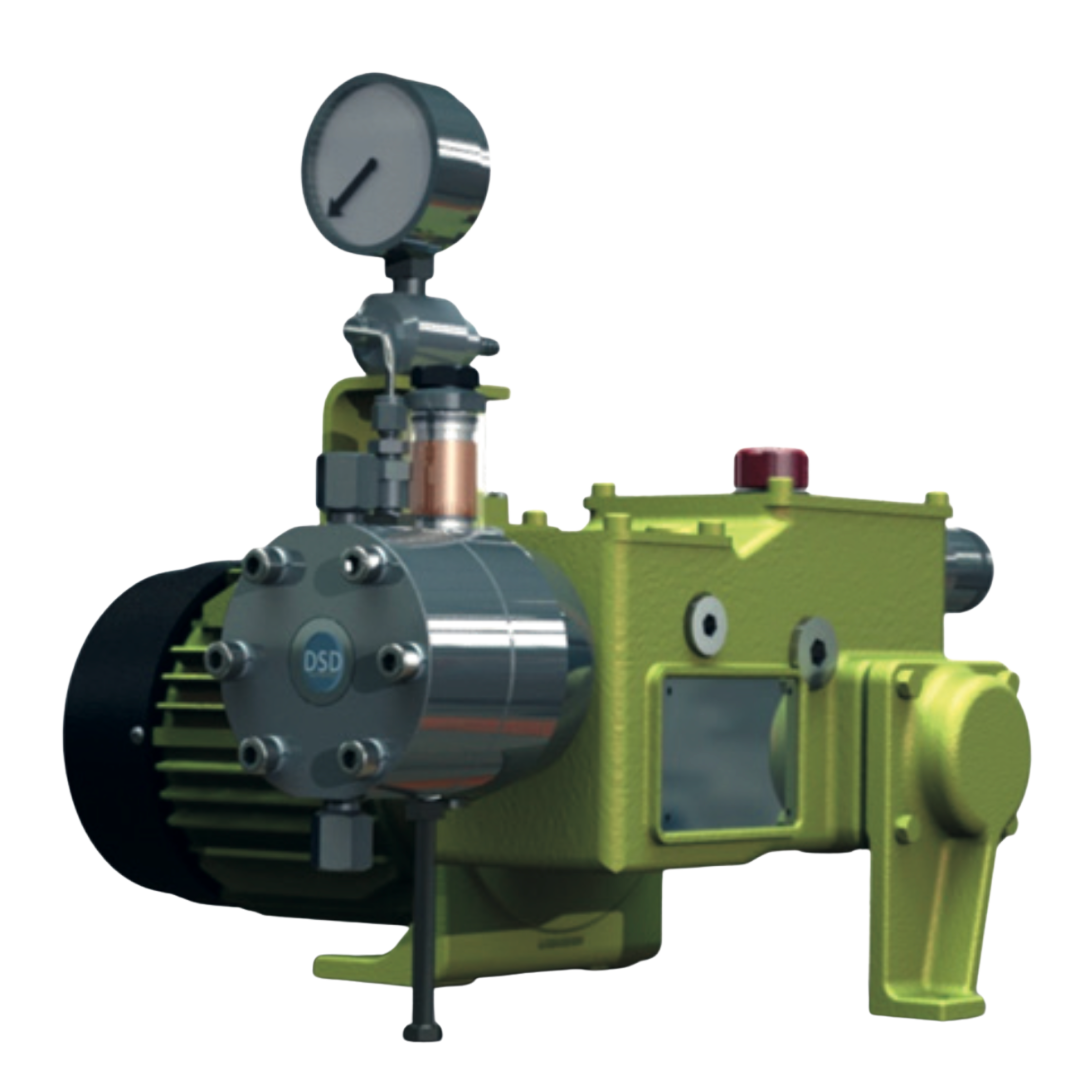

MILROYAL Series D
Diaphragm Metering Pump with Enhanced Safety and Performance
MILROYAL Series D is a diaphragm metering pump equipped with the advanced DSD safety system, offering double diaphragm protection and leak detection for mission-critical applications. Built on the proven MILROYAL platform, this pump combines high accuracy, long service life, and process safety. It is ideal for industries where diaphragm integrity is essential, such as oil and gas, chemical processing, power generation, and water treatment. With flexible configurations and API 675 compliance, the Series D ensures safe and continuous operation under the most demanding conditions.
Double diaphragm design with rupture detection
Continuous operation even after diaphragm failure
Early leak alarm for preventive maintenance
Based on trusted MILROYAL A, B, or C platforms
Long diaphragm life up to 20,000 hours
Wide range of flows and pressures depending on base model
Fully API 675 compliant
Modular liquid ends with material options for chemical compatibility
Oil-lubricated drive for extended durability
Remote monitoring compatibility for control systems
Flow and Pressure Range
Depends on the MILROYAL model base (A, B, or C):
Flow: From small dosing up to 3,000 gallons per hour
Pressure: Up to 20,000 PSI on Series C platform
Pump Type
Diaphragm metering pump with Double Safety Diaphragm system
Diaphragm System
Double diaphragm with integrated monitoring and alarm
Prevents fluid leaks in case of primary diaphragm failure
Drive System
Same as MILROYAL A, B, or C depending on configuration
Oil-lubricated for long service life
Compliance
API 675 compliant
Meets strict industrial safety and performance standards
Control Options
Manual, pneumatic, or electronic stroke control
Remote automation compatible
Applications
Chemical injection with leak prevention
Hazardous fluid handling
Critical dosing in oil and gas, power, and chemical industries
